#6922 Generate svg from domain diagram headless

Actifsource code generator for any programming language
It should be possible to generate the svg diagrams headless e.g. via ant.
This makes it possible to generate modvis animations or documentation on the build server.

The headless svg build was based on the GLSP. This is the preliminary stage for later editing the Actifsource editors via Theia VsCode or Native in the browser.

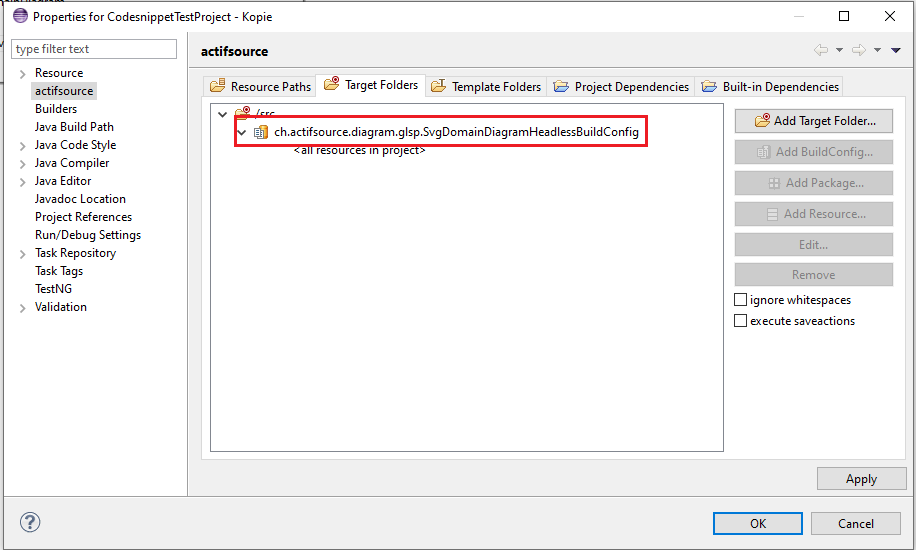

BuildConfig 'SvgdomainDiagramHeadlessBuildConfig'

6922 1 svg

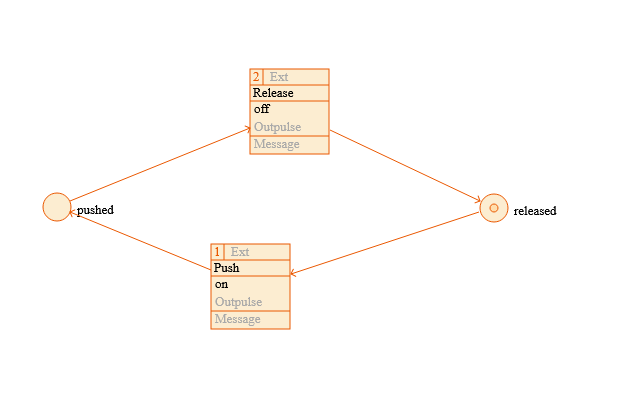

6922 2 svg1


On github the example has been extended:
https://github.com/actifsource/ch.actifsource.example.cip/tree/master/ch.actifsource.example.cip.lampsystem
