#6904 Display any relations that are only implicitly visible in the domain diagram

Actifsource code generator for any programming language
It should be possible to display any relations that are only implicitly visible in the domain diagram.
For example, with an inherited state machine, the inherited transitions can be displayed in the diagram.

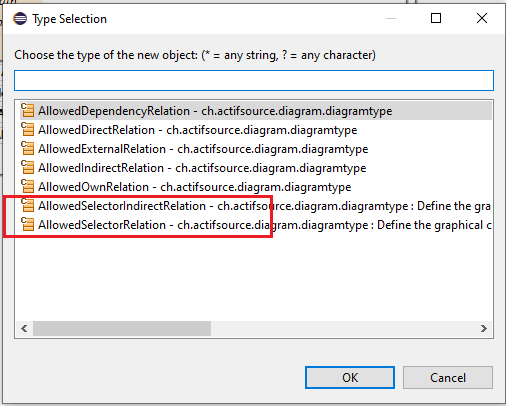

For that the AllowedSelectorRelation or AllowedSelectorIndirectRelation are used:

6904 1 SelectorRelation

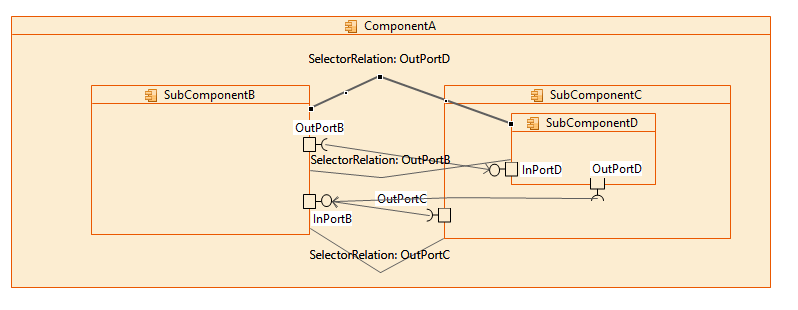

In this example, the connection of the components can be displayed via the port:

6904 2 SelectorRelation1

6904 3 SelectorRelation2
