Release: Actifsource V11.3.0

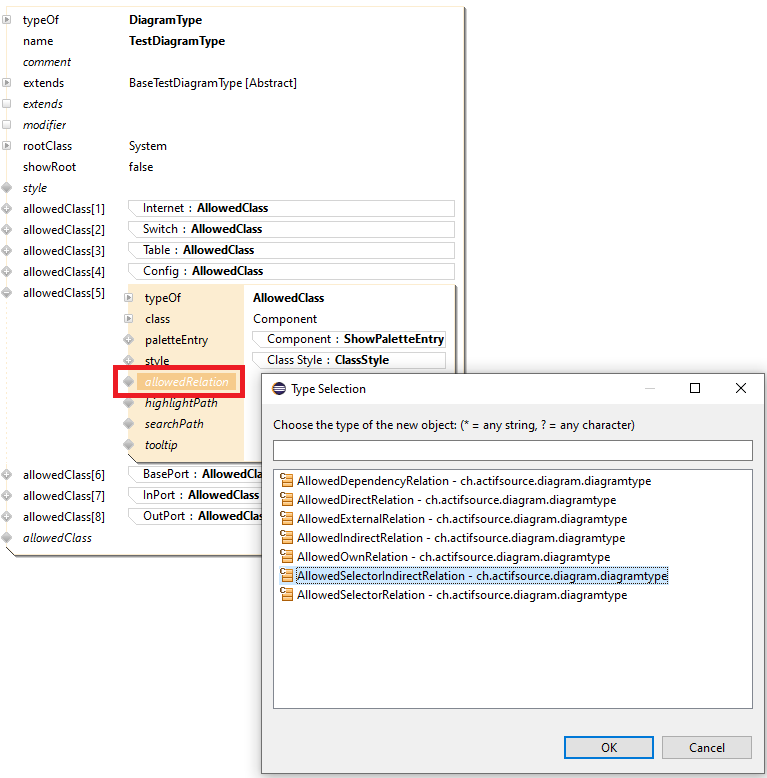

In the diagram type it should be possible to represent arbitrarily complex relations between model resources. These relations cannot be edited in the diagram.
In addition, the relation should refer to a model resource (Indirect resource) between source and target.

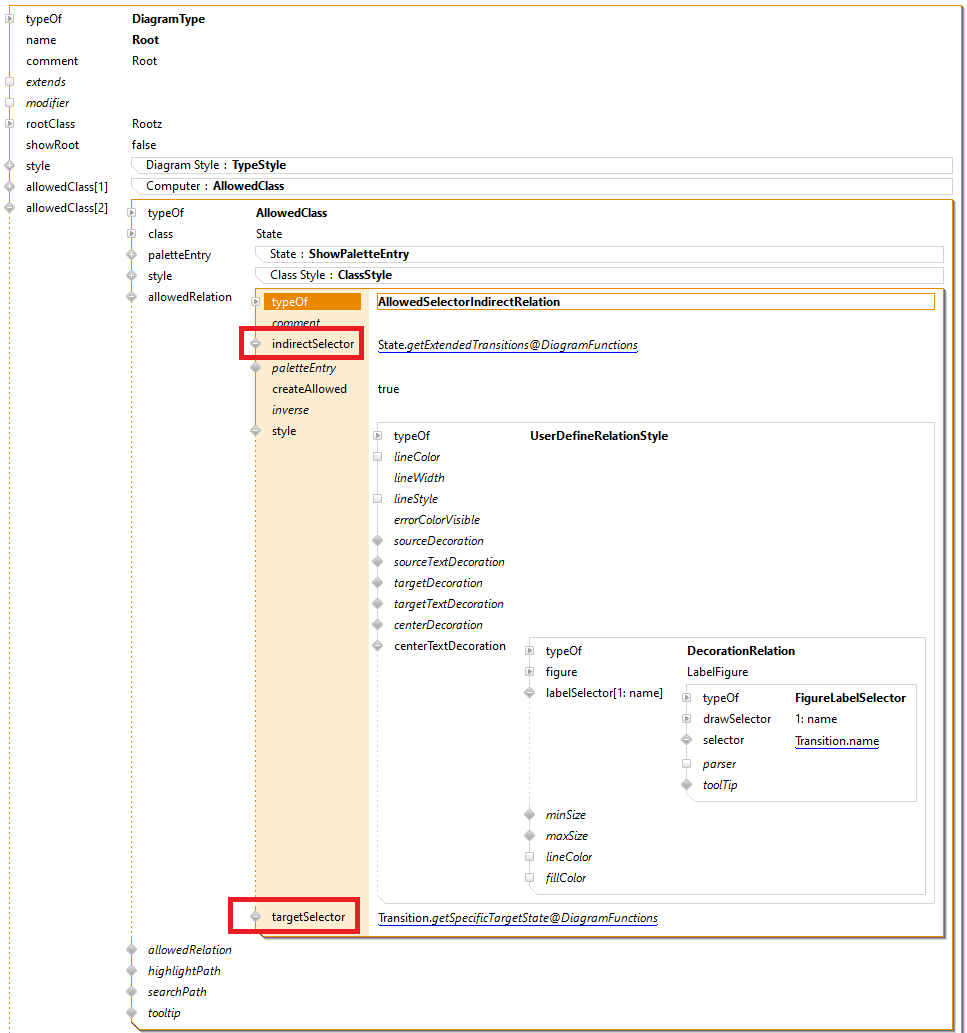

The selector 'indirectSelector' can be used to select the indirect resource and the selector 'targetSelector' can be used to find the target resource from the indirect resource:

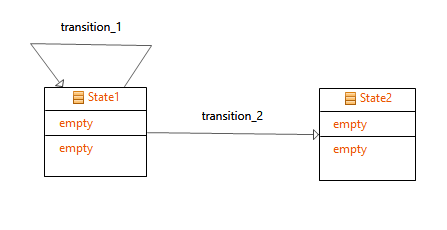

This feature can be used e.g. in a state machine to display inherited transitions in the diagram.
In the diagram type it should be possible to represent arbitrarily complex relations between model resources. These relations cannot be edited in the diagram.
In addition, the relation should refer to a model resource (Indirect resource) between source and target.
The selector 'indirectSelector' can be used to select the indirect resource and the selector 'targetSelector' can be used to find the target resource from the indirect resource:
This feature can be used e.g. in a state machine to display inherited transitions in the diagram.
