Actifsource V9.0.1

Environment

• Actifsource ready for Eclipse Photon

Domain Diagram Editor

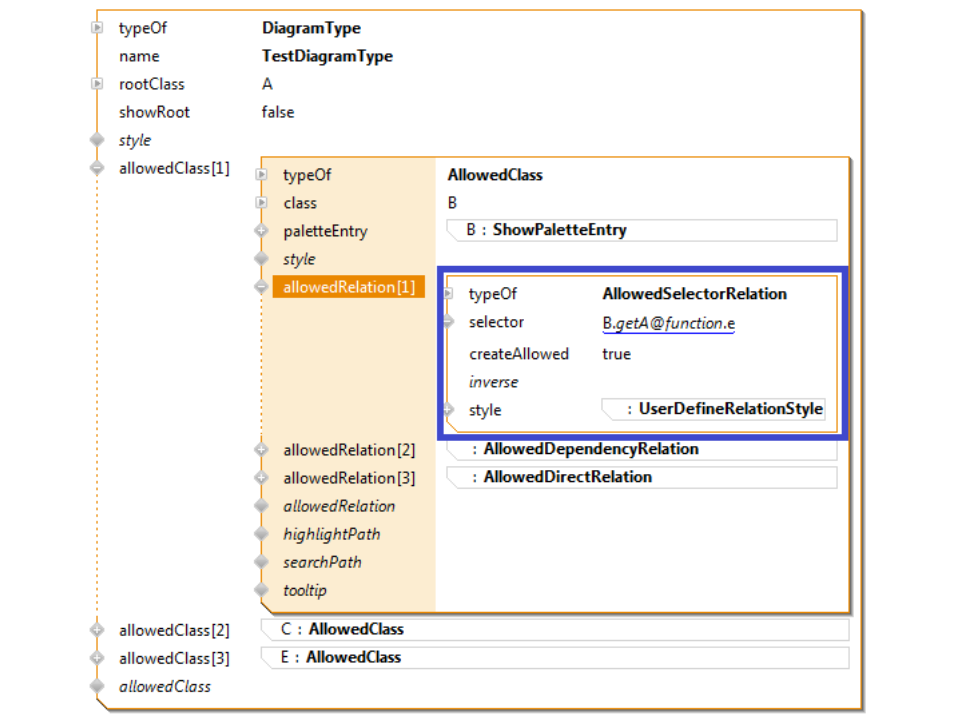

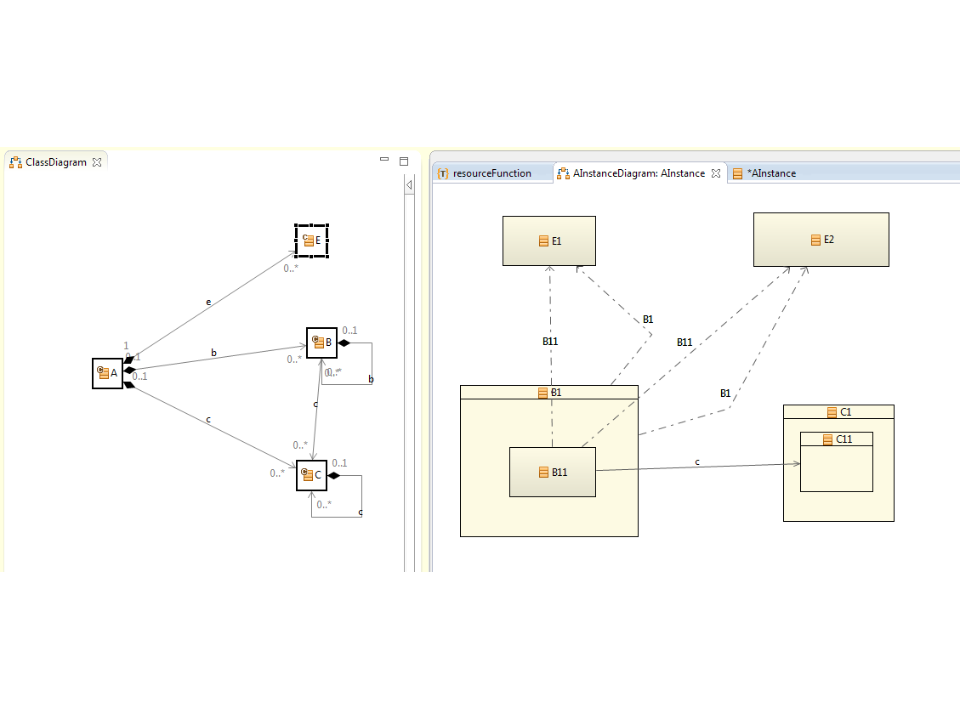

• Selector relation to show the dependency between shapes

Domain Diagram Editor

• Fix Marquee inside parent elements

• Use the Actifsource Community Edition for NON-commercial projects only

New Update Site

• https://updates.actifsource.com/updates
• https://updates.actifsource.com/updates-enterprise

Installation might fail

• If the installation fails, delete the .eclipse folder in the user folder
• Please note that passwords from updates sites will get lost
• See also bugs.eclipse.org


Installing Actifsource

• Actifsource sets the memory settings automatically after installing and restarting
• The Restart-Button displayed after the plugin installation, restarts eclipse in such a way that it still uses the old memory settings
• To prevent OutOfMemoryExceptions you need to completely close eclipse (File, Exit or Close-Button) and start it again

We recommend the following system requirements.

System	Recommendation
Java	Version 8
Eclipse	4.8
OS	Win 7, gtk Linux
OS Architecture	64 Bit
Processor	64 Bit
RAM	8 GB
Disk	SSD

We recommend the following settings in the eclipse.ini file.

Property	Value
Minimum Memory Size	-Xms800m
Maximum Memory Size	-Xmx4000m
Virtual Machine	-vm C:\Program Files\Java\jre8\bin

We have used the following open source libraries in our products. Many thanks to all the developers for providing their great work to the community.

Library	License
annotations.jar	LGPL v2.1/BSD
ant-contrib-1.0b3.jar	Apache
antlr-2.7.6.jar	BSD
antlr-3.1.1-runtime.jar	BSD
bcprov-jdk16-145.jar	MIT
commons-collections-3.2.1.jar	Apache
Eclispse 4.8.x	EPL
jdom.jar	Apache
jsr305.jar	BSD
jug.jar	LGPL v2.1
logging-1.0.3.jar	Apache
objenesis-1.0.jar	Apache
xerceslmpl.jar	Apache
