Actifsource V9.0.0

Actifsource code generator for any programming language

Feature Screenshots

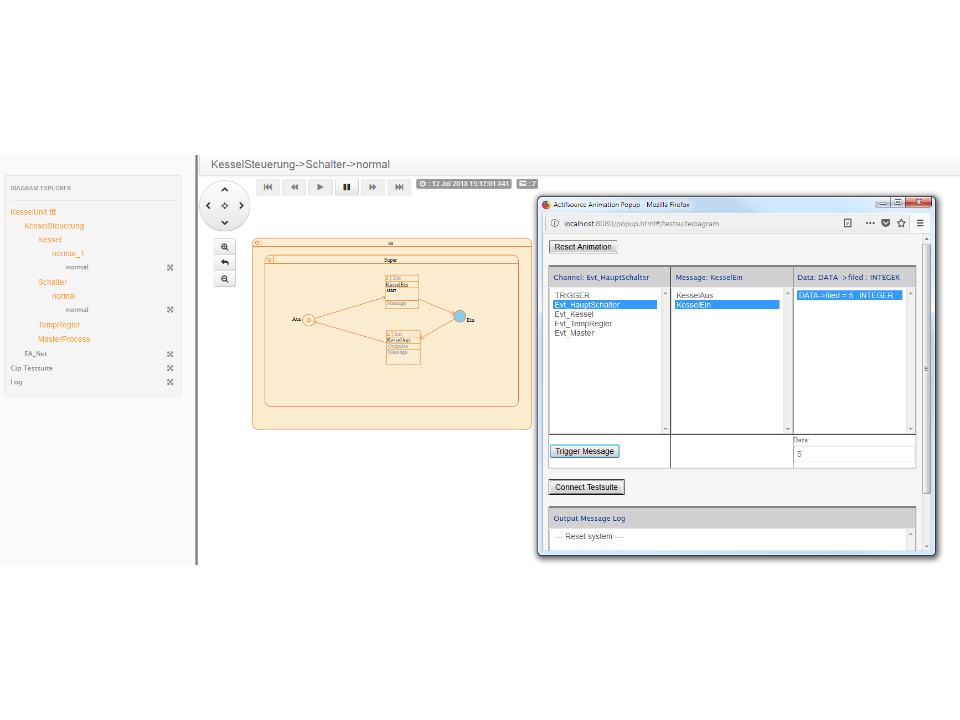

  • CIP - Animation

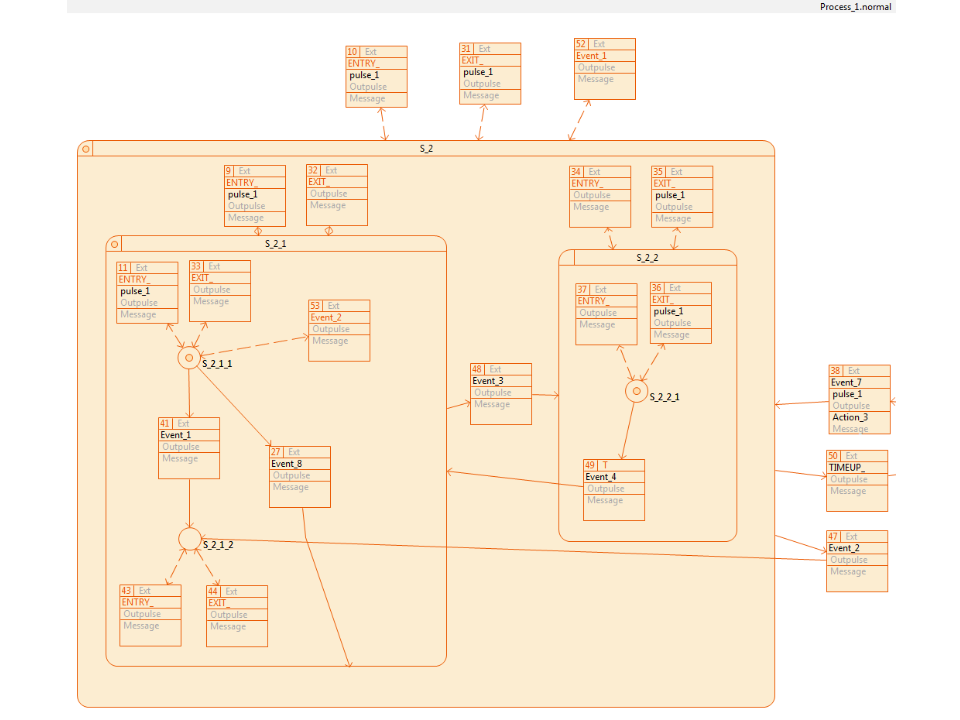

  • CIP - SuperState

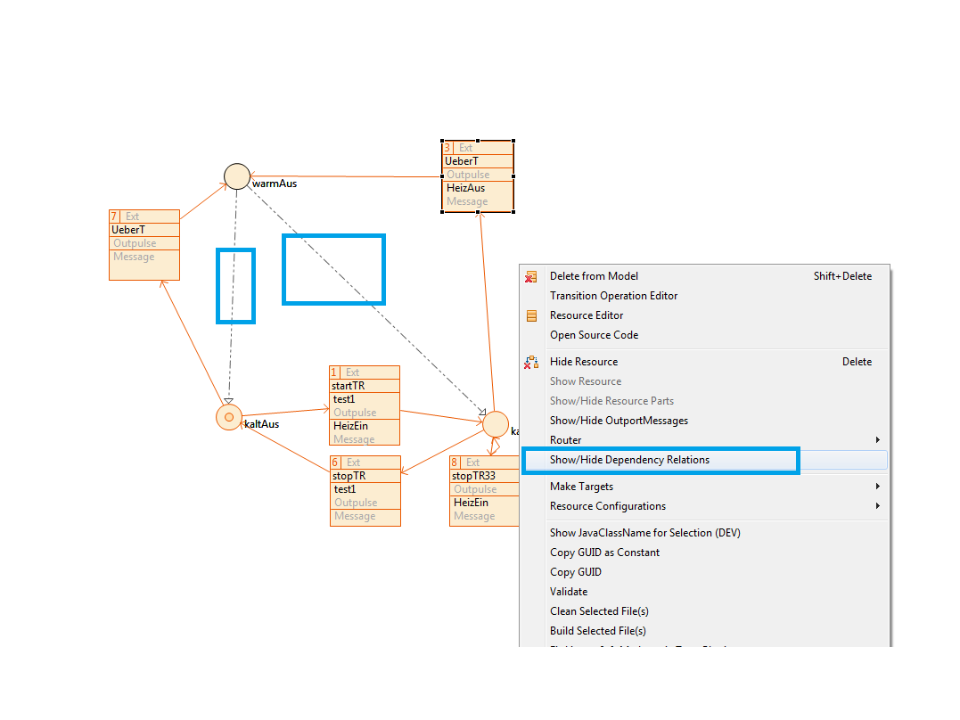

  • DDE - DependencyRelation

Features

CIP

  • CIP Animation: Improved CIP Animation in the Webbrowser
  • CIP Super-State: CIP is now supporting super-states
  • CIP Test-Suite: Triggers AutoTimeup and AutoStep after TickEvent

Core

  • Actifsource Perfomance Boost
    • Faster reading of resource files
    • Improved change notification architecture
    • Improved name index to calculate resource names
    • Transient Resource Synchronizer for Codesnippets
      • Export Precompiled Transient Resources
    • Improved Codesnippet validation

Domain Diagram Editor

  • Show/Hide dependency relation inside the DomainDiagram

Template Editor

  • Added new C++ 11/14 keywords to TemplateLanguage C++

Bug Fixes

CIP

  • Nebula grid table update problem
  • Bug tooltip superstate id always zero

CodeSnippet

  • Cursor Position wrong after return

Domain Diagram Editor

  • Possible Eclipse crash after edit DomainDiagram

License Restrictions

  • Use the Actifsource Community Edition for NON-commercial projects only

Known Issues

New Update Site


Installing Eclipse Neon or
Eclipse Oxygen

Delete the following entries from eclipse.ini after installing the Actifsource Plugin:

  • -XX:+UseConcMarkSweepGC
  • -XX:+CMSIncrementalMode

Installation might fail


  • If the installation fails, delete the .eclipse folder in the user folder
  • Please note that passwords from updates sites will get lost
  • See also bugs.eclipse.org

Installing Actifsource

  • Actifsource sets the memory settings automatically after installing and restarting
  • The Restart-Button displayed after the plugin installation, restarts eclipse in such a way that it still uses the old memory settings
  • To prevent OutOfMemoryExceptions you need to completely close eclipse (File, Exit or Close-Button) and start it again

Recommended System Requirements

We recommend the following system requirements.

System
Recommendation
Java Version 8
Eclipse 4.8
OS Win 7, gtk Linux
OS Architecture 64 Bit
Processor 64 Bit
RAM 8 GB
Disk SSD


Configuration (eclipse.ini)

We recommend the following settings in the eclipse.ini file.

Property
Value
Minimum Memory Size -Xms800m
Maximum Memory Size -Xmx4000m
Virtual Machine -vm C:\Program Files\Java\jre8\bin


Used Open Source Libraries

We have used the following open source libraries in our products. Many thanks to all the developers for providing their great work to the community.

Library
License
annotations.jar
LGPL v2.1/BSD
ant-contrib-1.0b3.jar Apache
antlr-2.7.6.jar BSD
antlr-3.1.1-runtime.jar BSD
bcprov-jdk16-145.jar MIT
commons-collections-3.2.1.jar Apache
Eclispse 4.8.x EPL
jdom.jar Apache
jsr305.jar BSD
jug.jar LGPL v2.1
logging-1.0.3.jar Apache
objenesis-1.0.jar Apache
xerceslmpl.jar Apache
