Actifsource

Actifsource V10.10.0

Actifsource code generator for any programming language

Feature Screenshots

  • 6693 LinkListFunctions

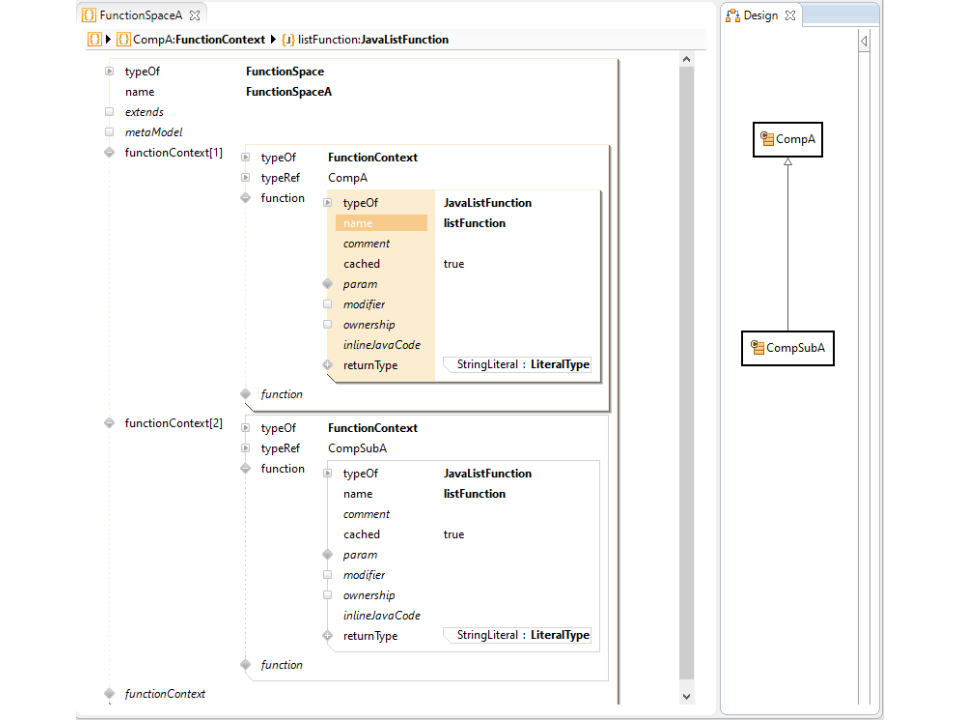

  • 6694 OverrideListFunction

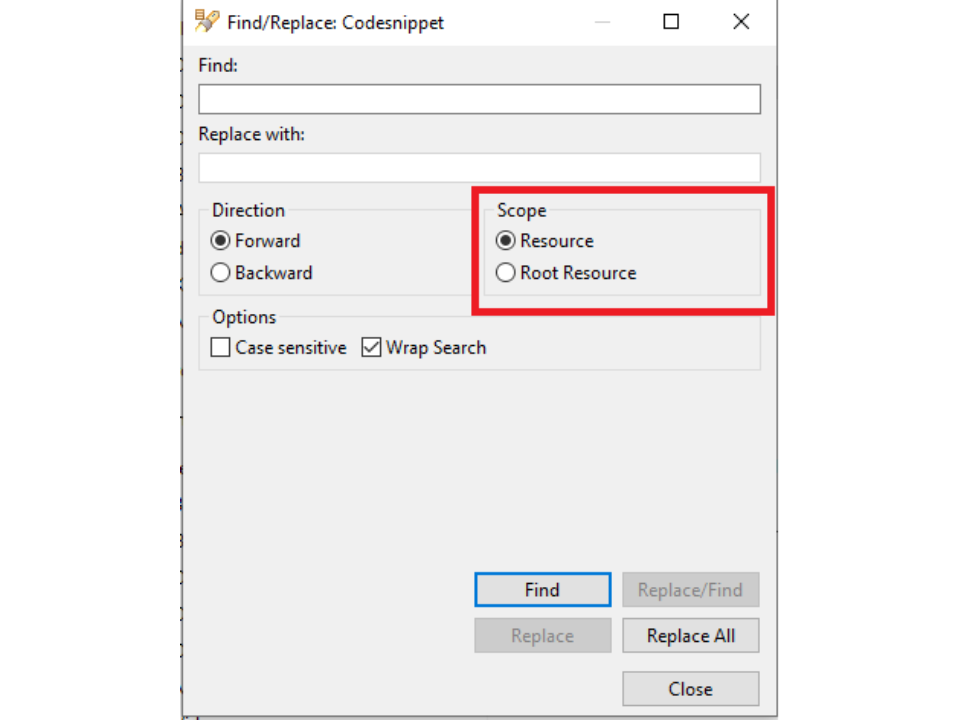

  • 6695 CodesnippetScope
  • 6696 ShowExceptionDialog

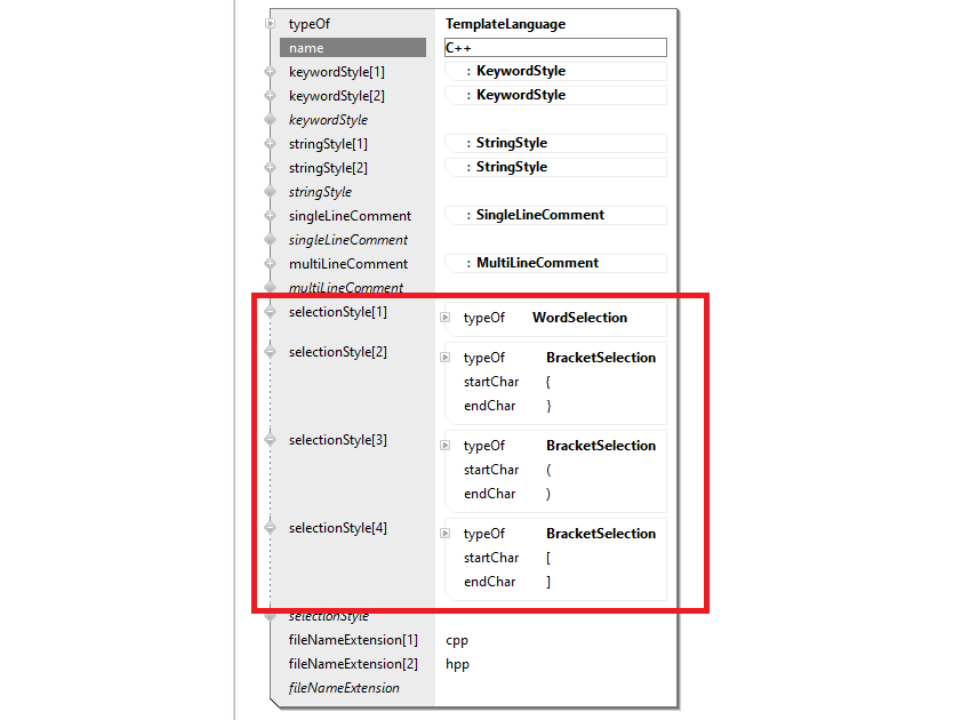

  • 6697 1 LanguageStyle
  • 6697 2 BracketColoring2
  • 6697 3 CodesnippetColoring
  • 6697 4 AccentuationColorDefinition
  • 6698 1 MergeNavigation

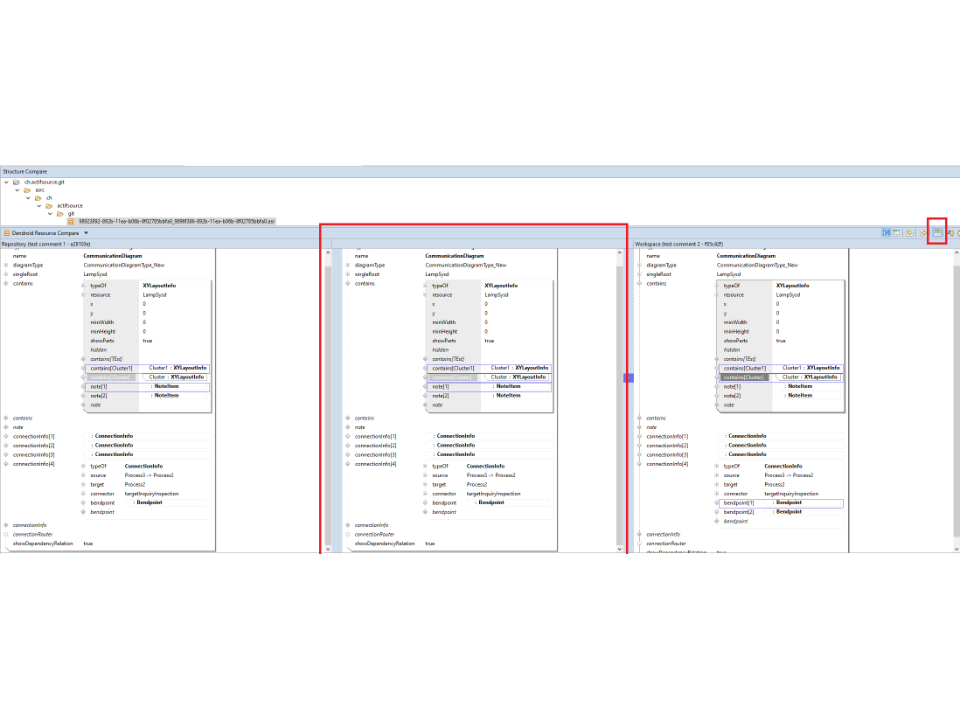

  • 6698 2 SiteBySiteMerge

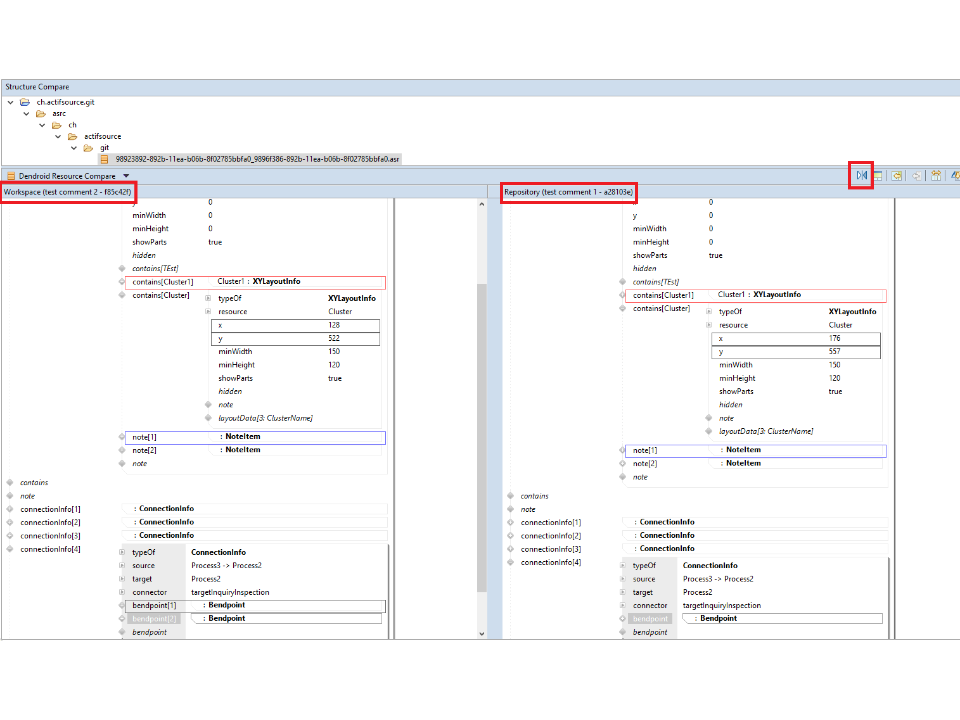

  • 6698 3 SwitchMerge
  • 6698 4 AncestorMerge
  • 6699 BugSelectorEnd

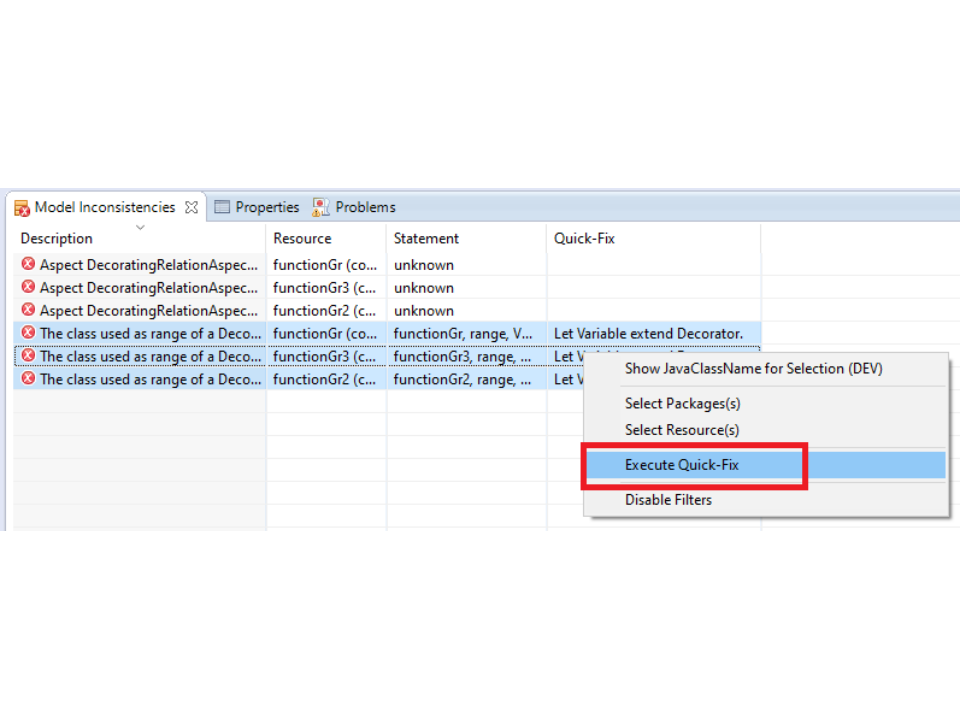

  • 6703 MultiselectQuickFix

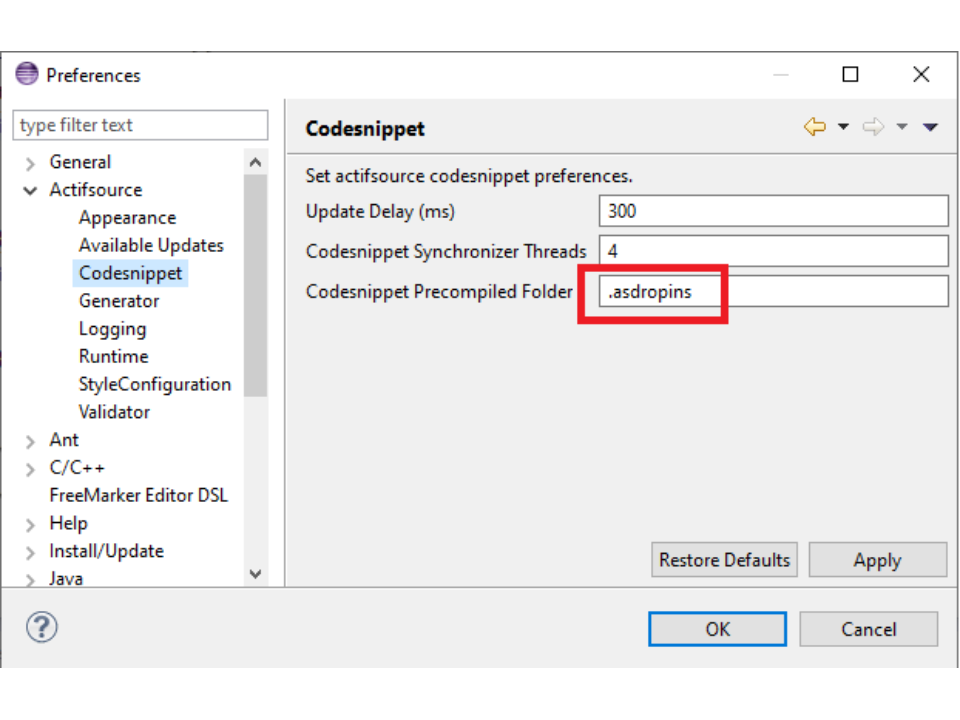

  • 6704 1 PrecompiledFolder

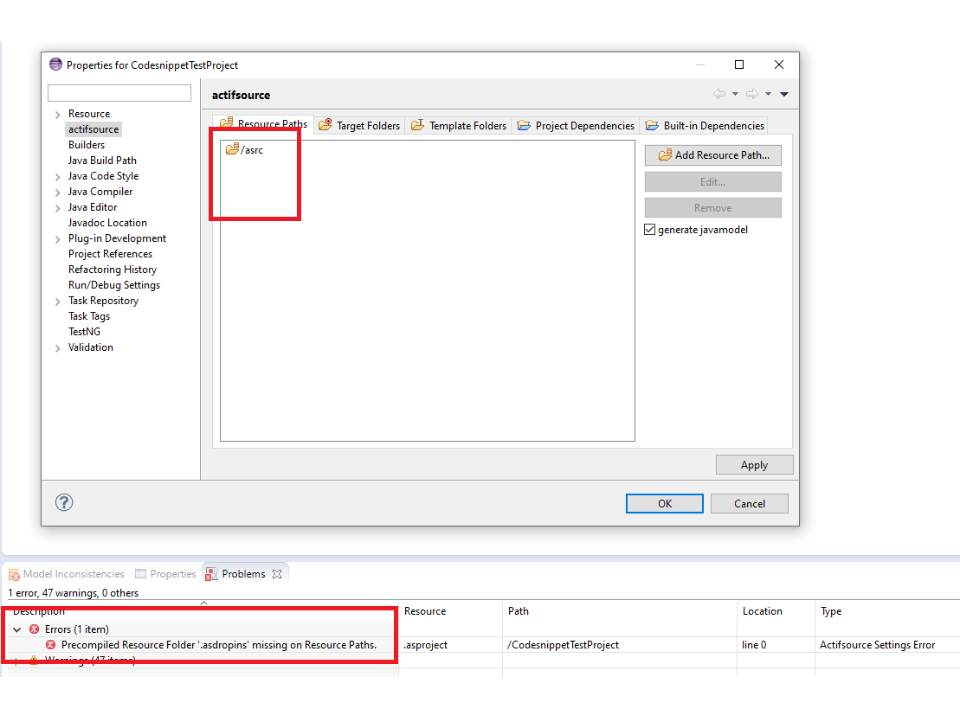

  • 6704 2 ErrorIfPrecompiledFolderNotExist
  • 6706 1 PrimaryKeyManager
  • 6706 2 ModelSnippetBuildIn
  • 6707 Operations

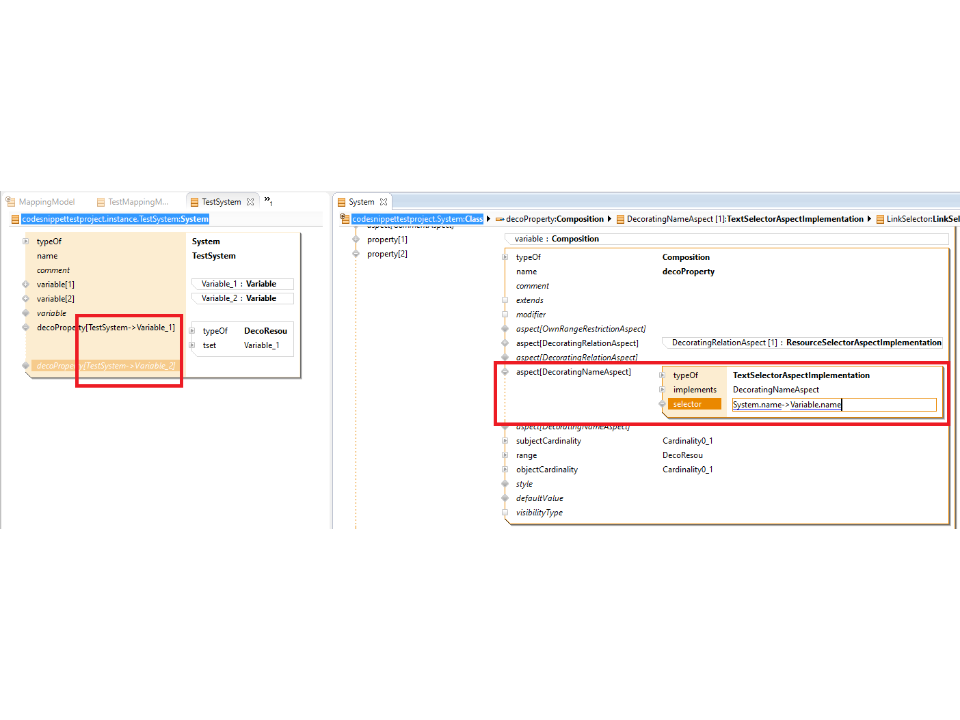

  • 6708 DecoNameAspect

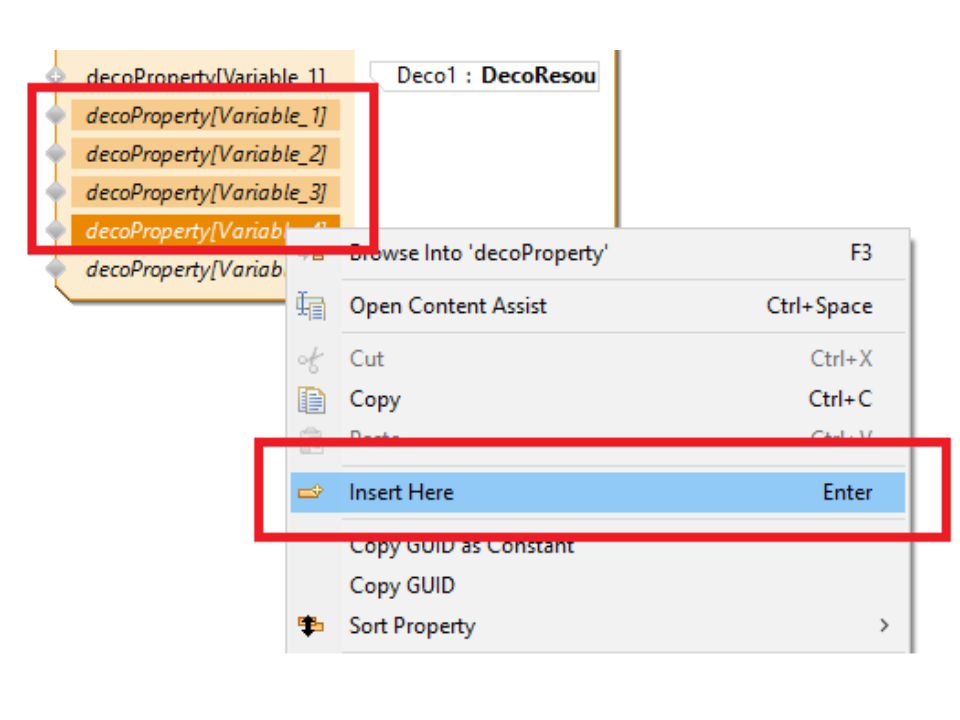

  • 6709 1 InsertHereMultiSelect1
  • 6709 2 InsertHereMultiSelect2

Features

Code Snippet

  • #6695 Codesnippet search (Ctrl+F) support resource and root resource scope
  • #6697 Support selection style on template/codesnippet language
  • #6704 Precompiled foder is missing on actifsource resource path

Core

  • #6708 Decorating relation support decorating name aspect

Model Snippet

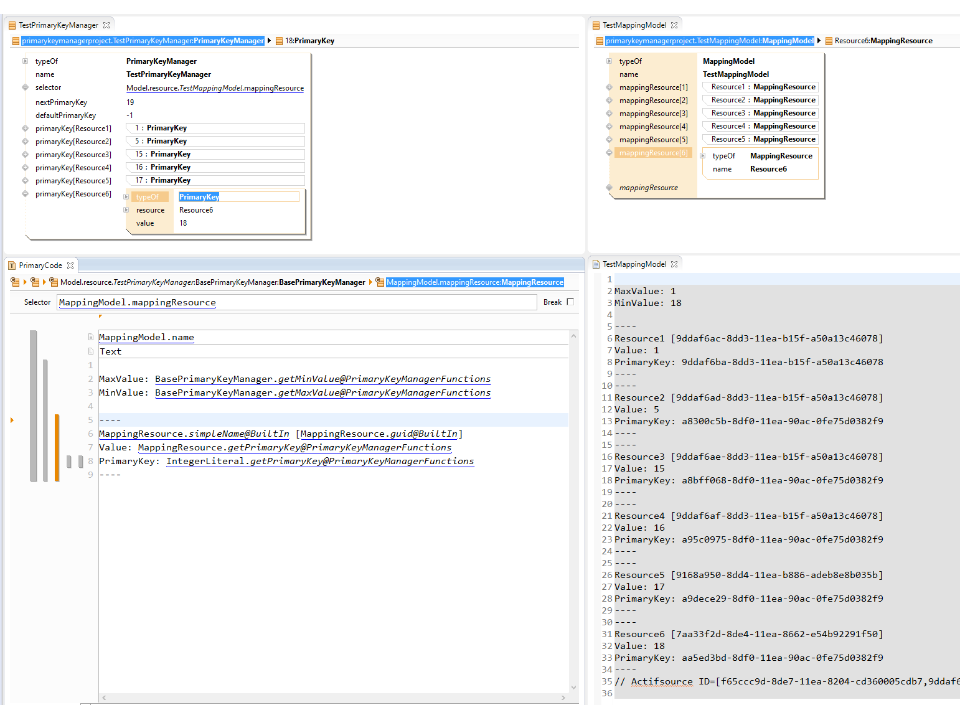

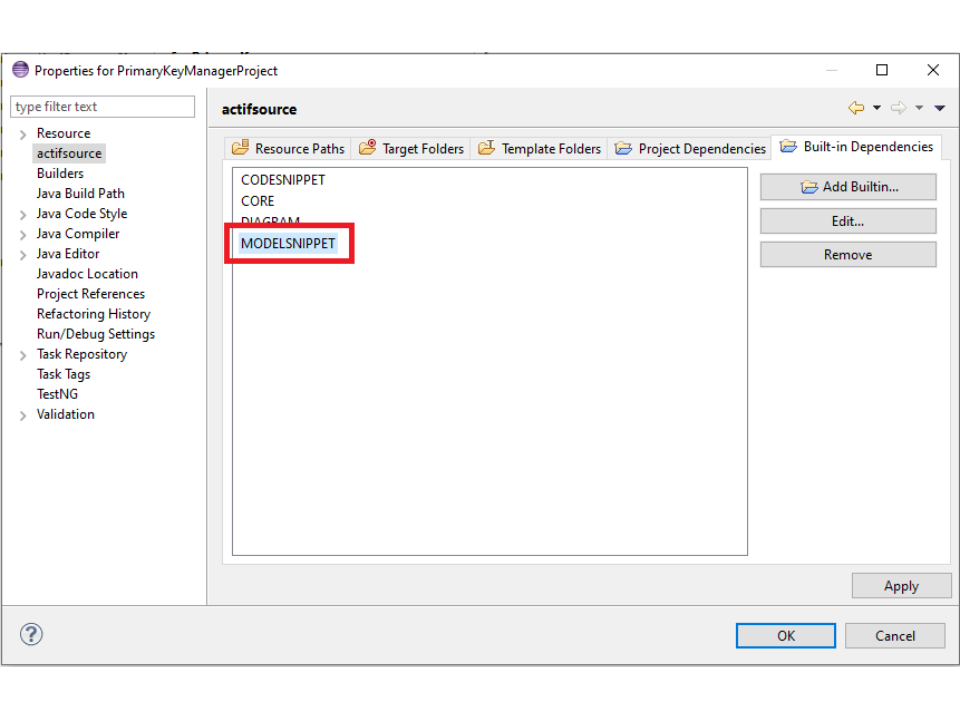

  • #6706 Support primaryKeyManager model inside modelsnippet built-in

Modvis

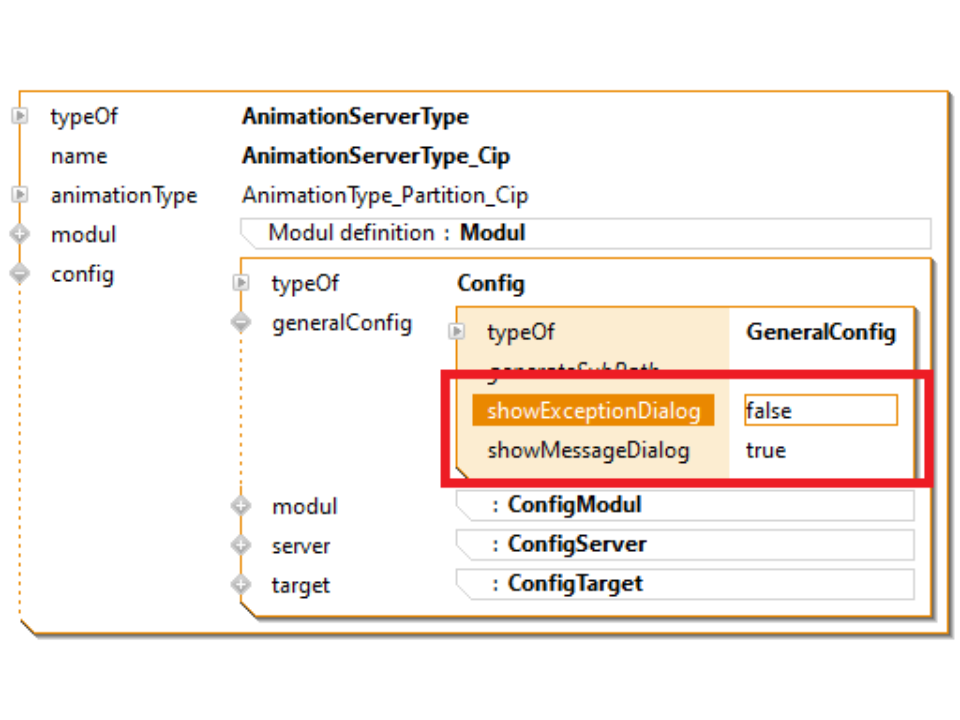

  • #6696 Animation config support enable/disable showExceptionDialog or showMessageDialog
  • #6705 Split 'modvis.server' project to actifsource and eclipse independent 'modevis.server.core' project

Resource Editor

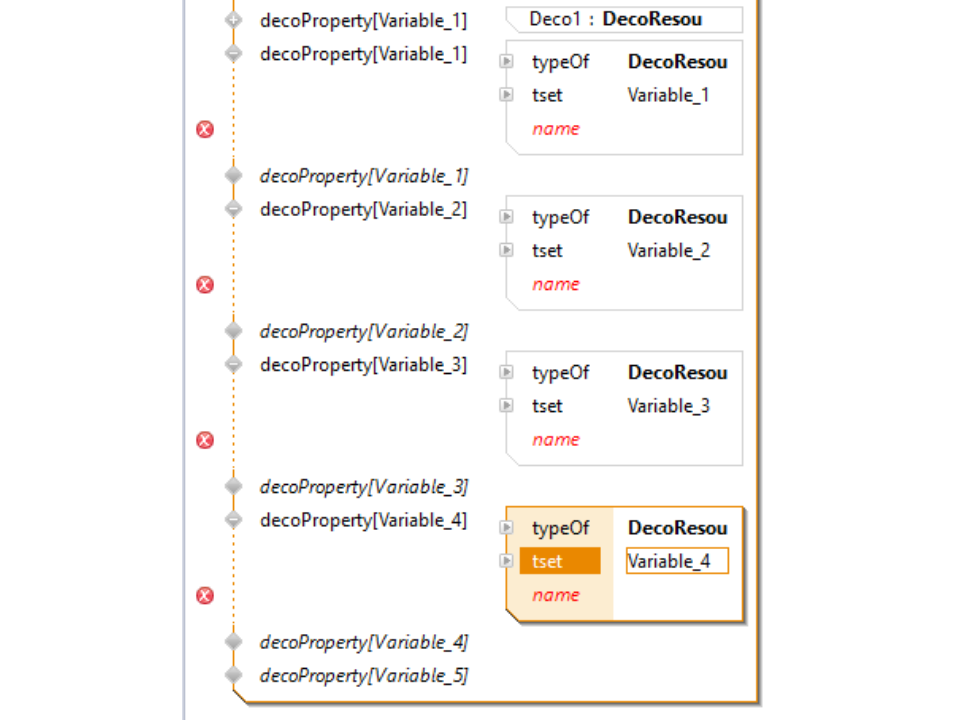

  • #6709 Insert here editor action support multiselect on empty line

Synchronize

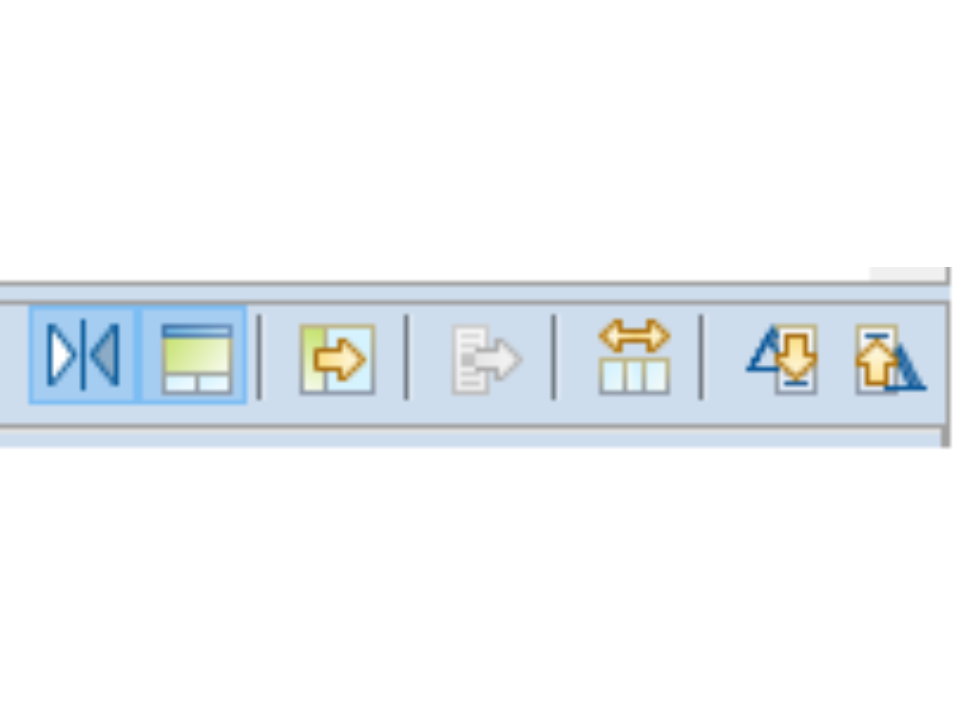

  • #6698 Actifsource merge view support three-way merge

Validator

  • #6703 Support model inconsistencies multi select quickfix

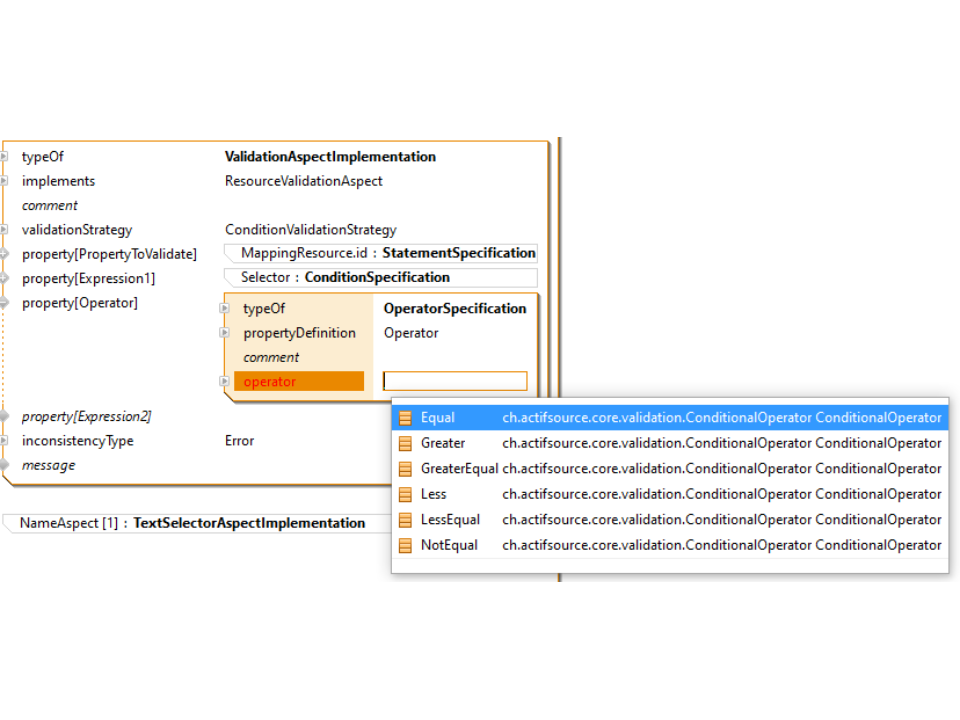

  • #6707 ConditionValidationStrategy support more operators

Bug Fixes

Core

  • #6694 Override list functions

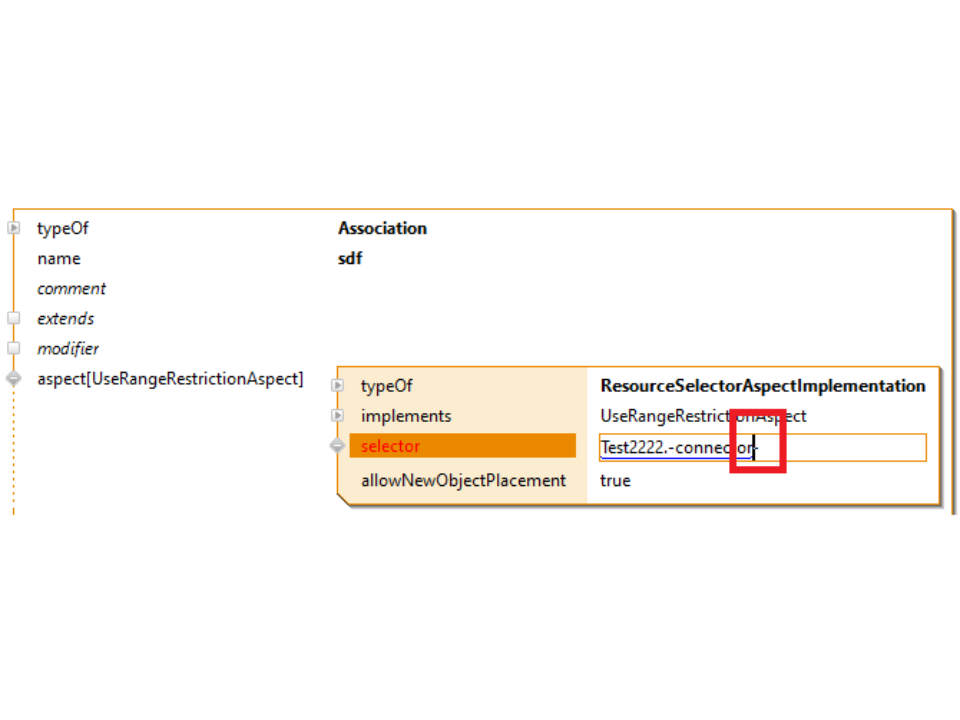

  • #6699 Insert toMeReleation inside selector adds '-' at the end of the relation

Search

  • #6702 Search strategy name provider has invalide query data

Template Editor

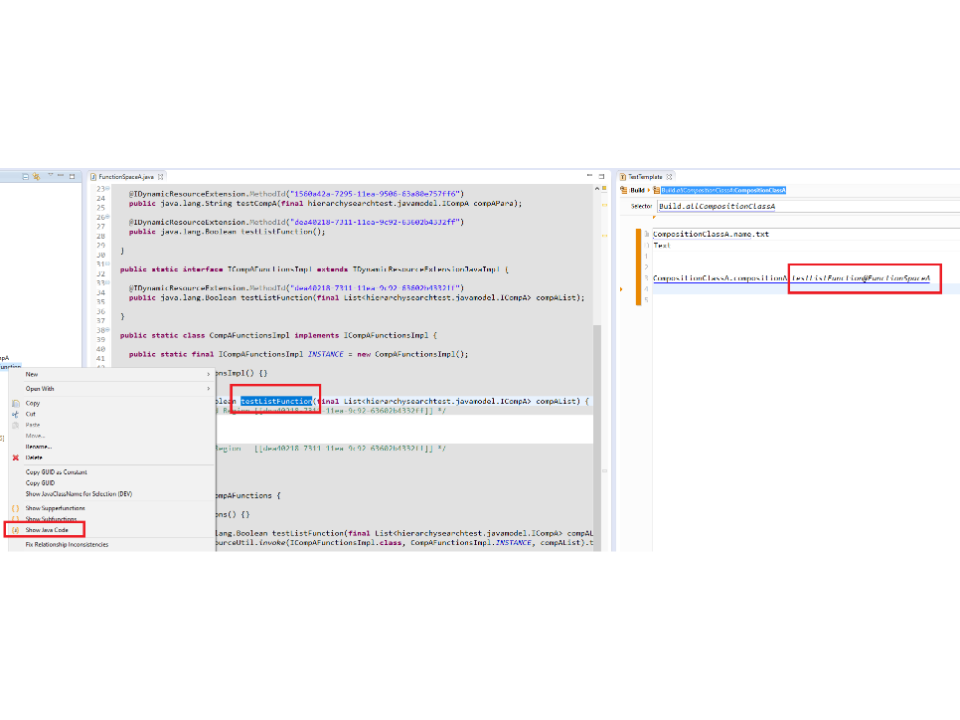

  • #6693 Link to list function java code from template or menu action don't works.

License Restrictions

  • Use the Actifsource Community Edition for NON-commercial projects only

Known Issues

Required bundle 'system.bundle' needed by 'javax.xml' was not found

  • This bug was introduced in Eclipse 4.12
  • Please use at least Eclipse 4.13 RC1 or RC2
  • https://download.eclipse.org/eclipse/downloads/

Using OpenJ9


New Update Site



Installing Actifsource

  • Actifsource sets the memory settings automatically after installing and restarting
  • The Restart-Button displayed after the plugin installation, restarts eclipse in such a way that it still uses the old memory settings
  • To prevent OutOfMemoryExceptions you need to completely close eclipse (File, Exit or Close-Button) and start it again

Installation might fail

  • If the installation fails, delete the .eclipse folder in the user folder
  • Please note that passwords from updates sites will get lost
  • See also bugs.eclipse.org

Recommended System Requirements

We recommend the following system requirements.

System
Recommendation
Java Version 8
Eclipse 4.8
VM OpenJ9
OS Win 10, gtk Linux
OS Architecture 64 Bit
Processor 64 Bit
RAM 8 GB
Disk SSD


Configuration (eclipse.ini)

We recommend the following settings in the eclipse.ini file.

Property
Value
Minimum Memory Size -Xms800m
Maximum Memory Size -Xmx4000m
Java Virtual Machine -vm
C:\path\to\OpenJ9\javaw.exe


Used Open Source Libraries

We have used the following open source libraries in our products. Many thanks to all the developers for providing their great work to the community.

Library
License
annotations.jar
LGPL v2.1/BSD
ant-contrib-1.0b3.jar Apache
antlr-2.7.6.jar BSD
antlr-3.1.1-runtime.jar BSD
bcprov-jdk16-145.jar MIT
commons-collections-3.2.1.jar Apache
Eclispse 4.8.x EPL
jdom.jar Apache
jsr305.jar BSD
jug.jar LGPL v2.1
logging-1.0.3.jar Apache
objenesis-1.0.jar Apache
xerceslmpl.jar Apache
