Actifsource V10.2.0

Actifsource code generator for any programming language

Feature Screenshots

  • CreateAction ClassStyle

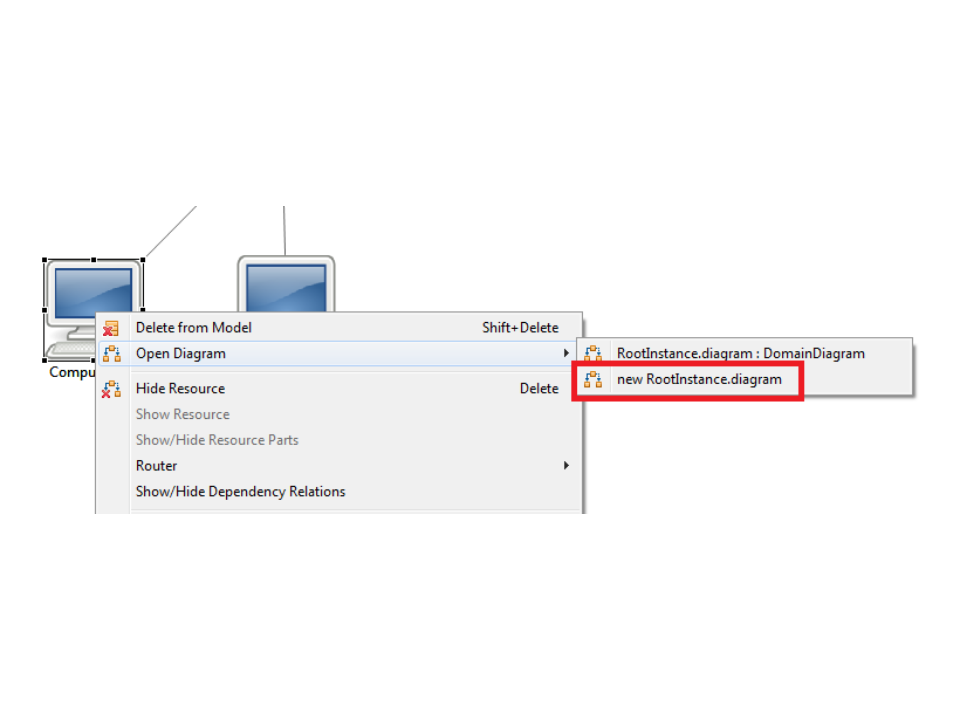

  • CreateAction Menu
  • DendroidEditorType
  • DependencyRelation

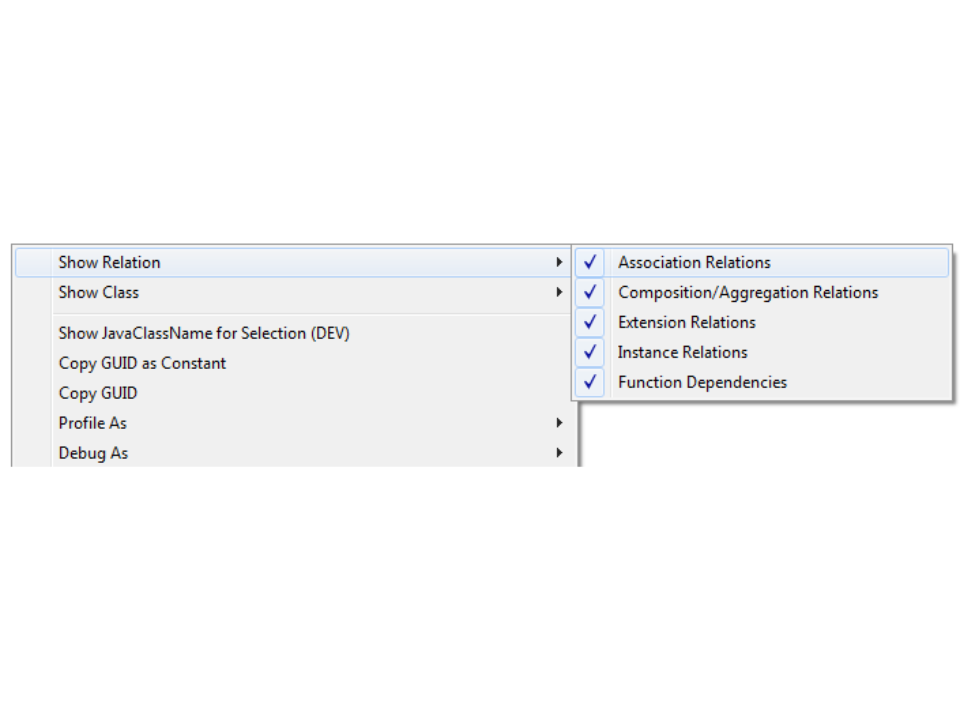

  • FunctionDependency ContextMenu
  • FunctionDependency Extend

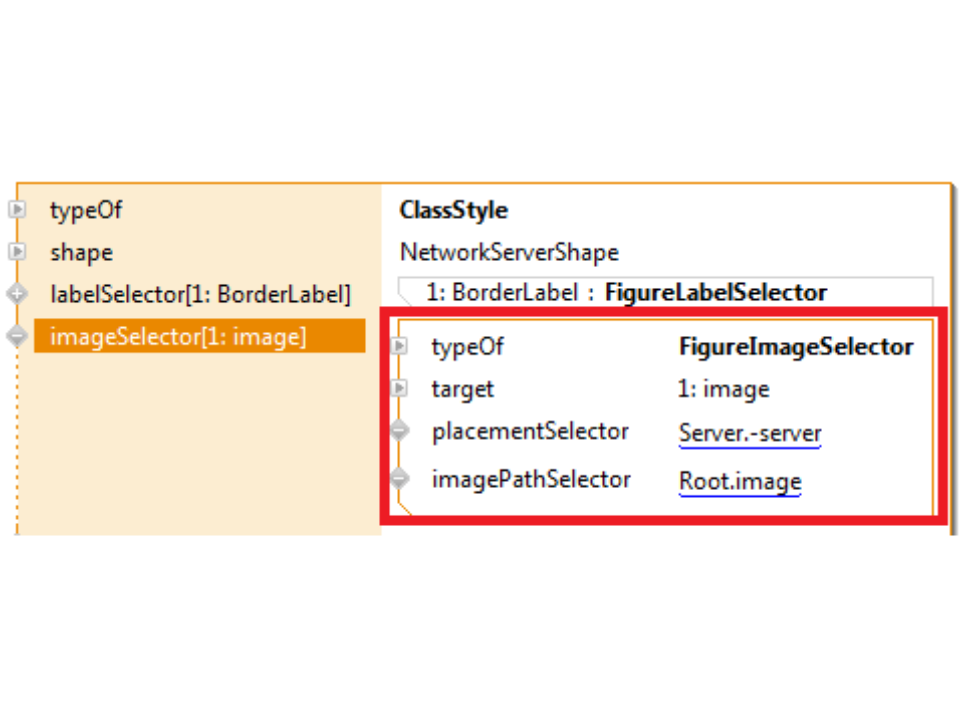

  • Image ClassStyle

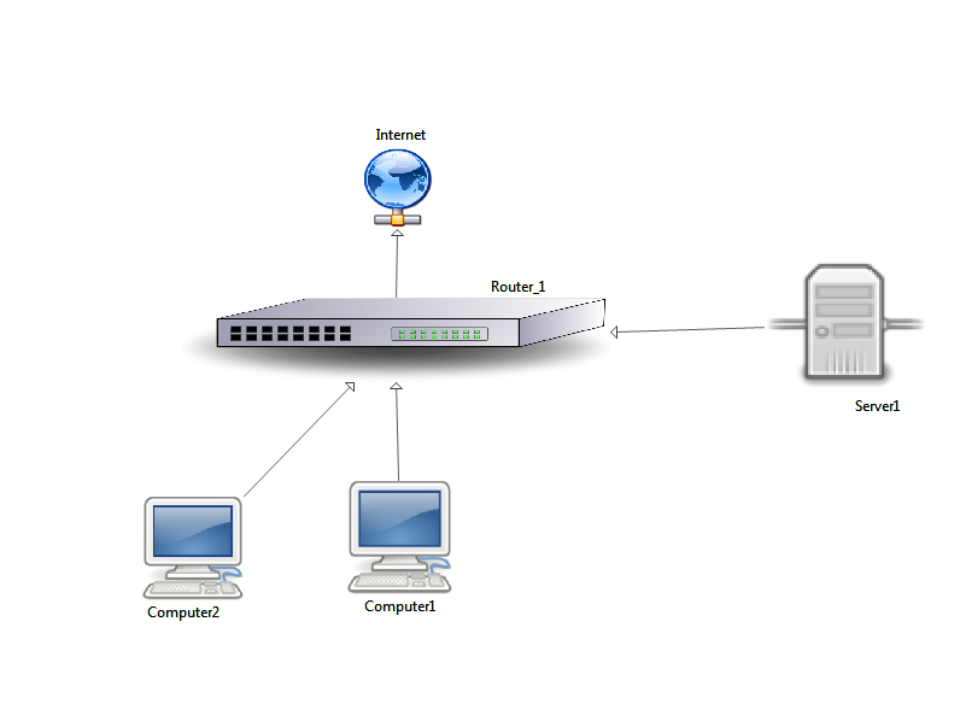

  • Image DomainDiagram
  • Image DrawImage

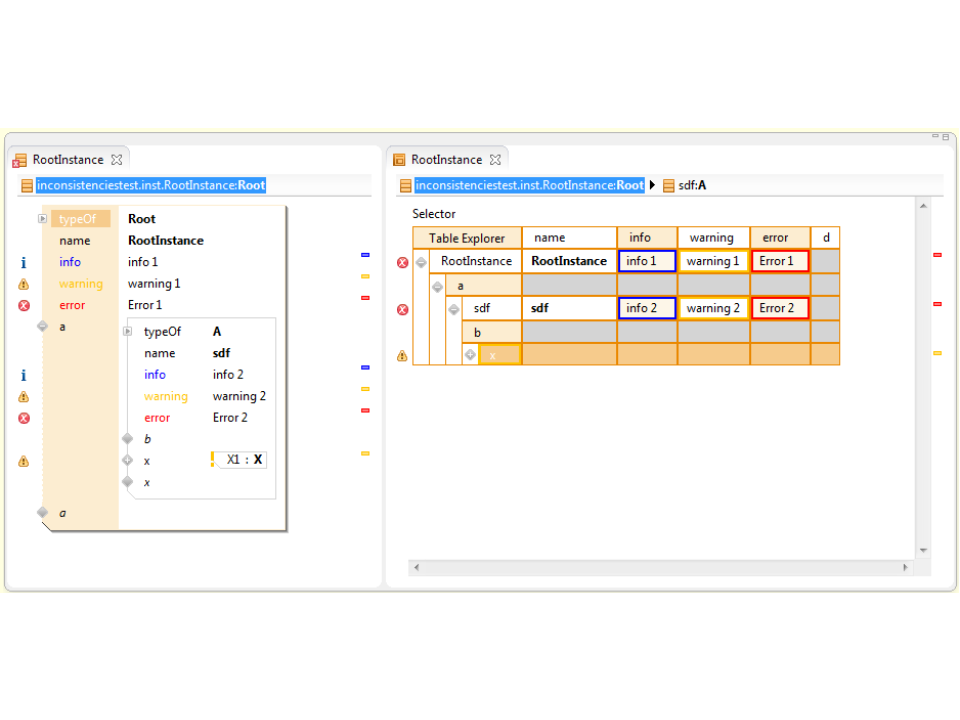

  • Inconsistency Editor

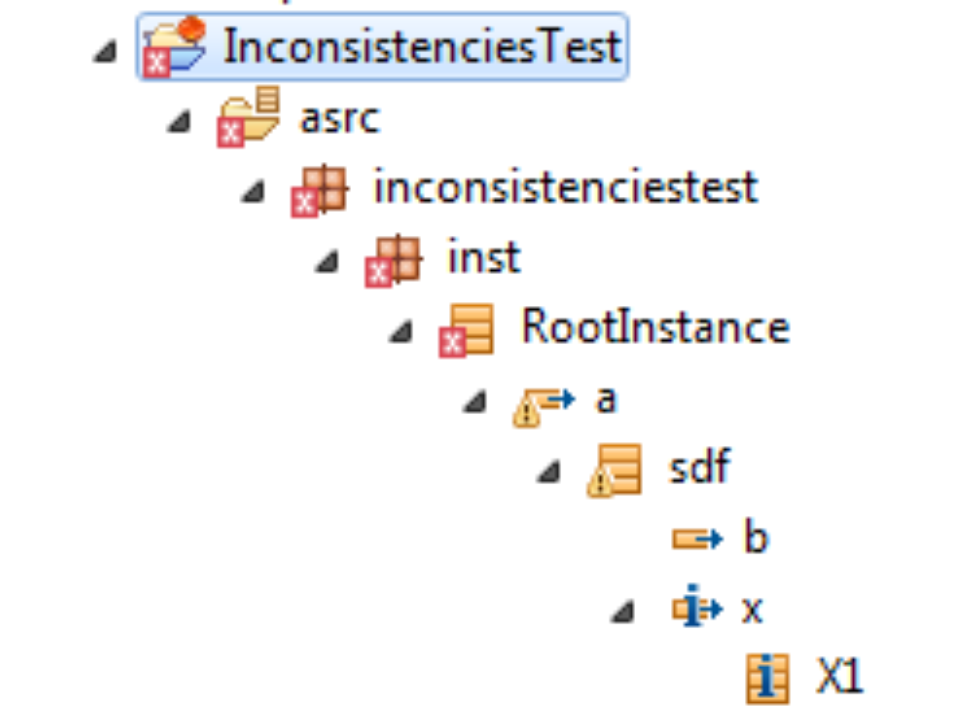

  • Inconsistency Explorer

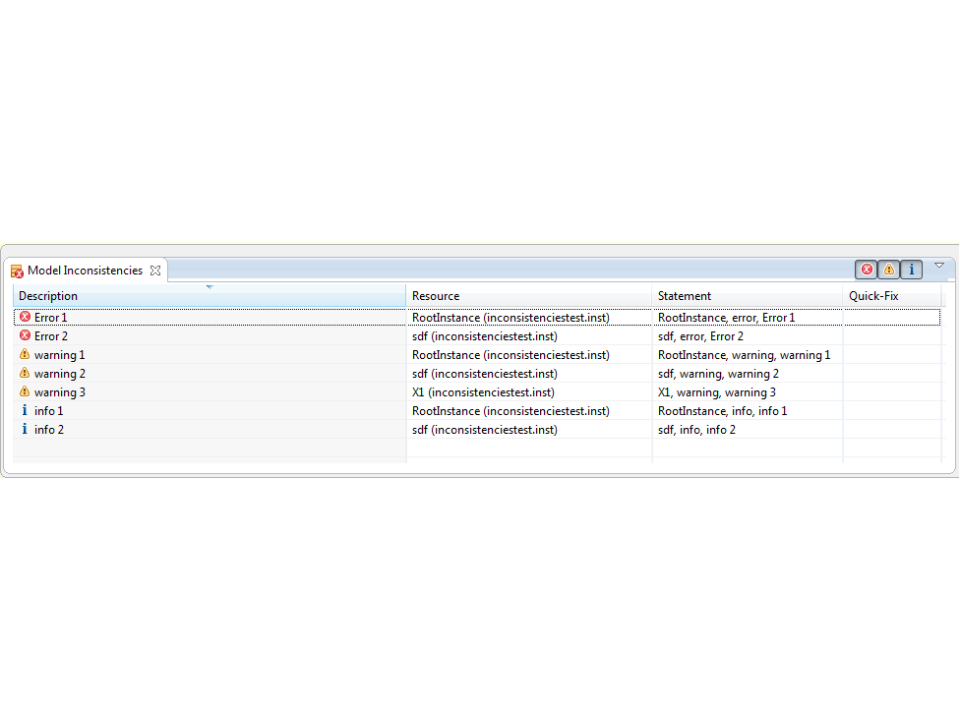

  • Inconsistency Model

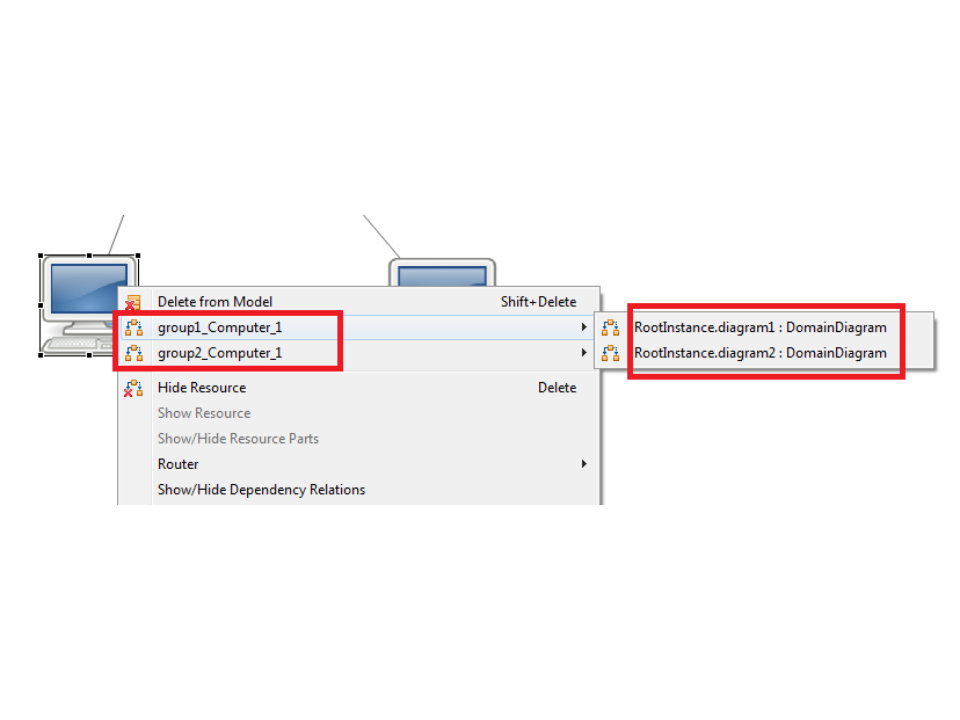

  • PropertyGroup ActionMenuGroup

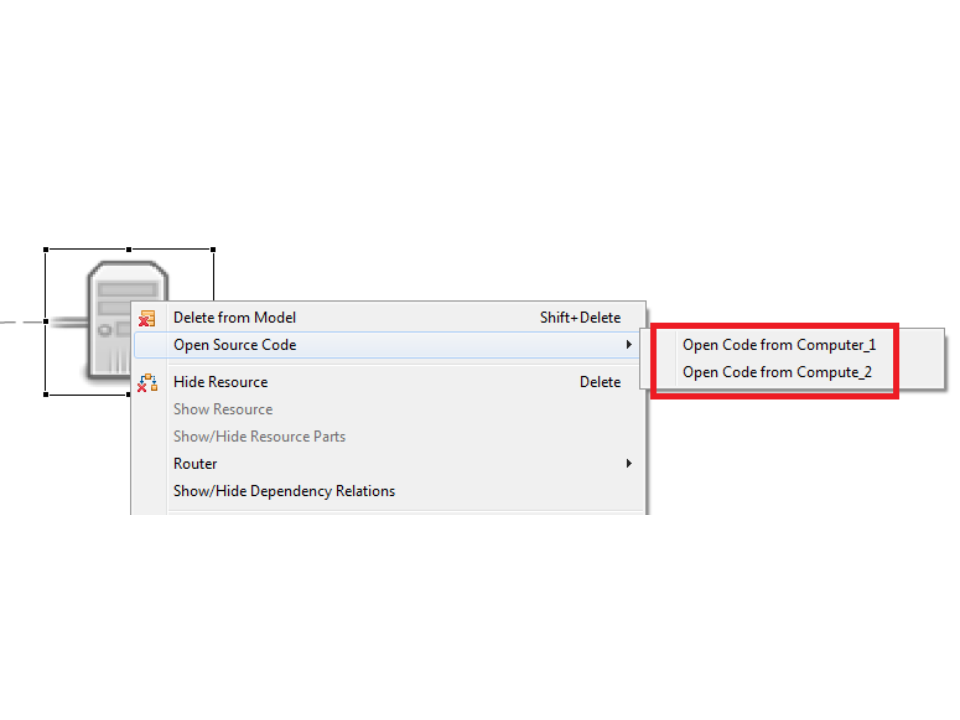

  • PropertyGroup OpenSourceCode

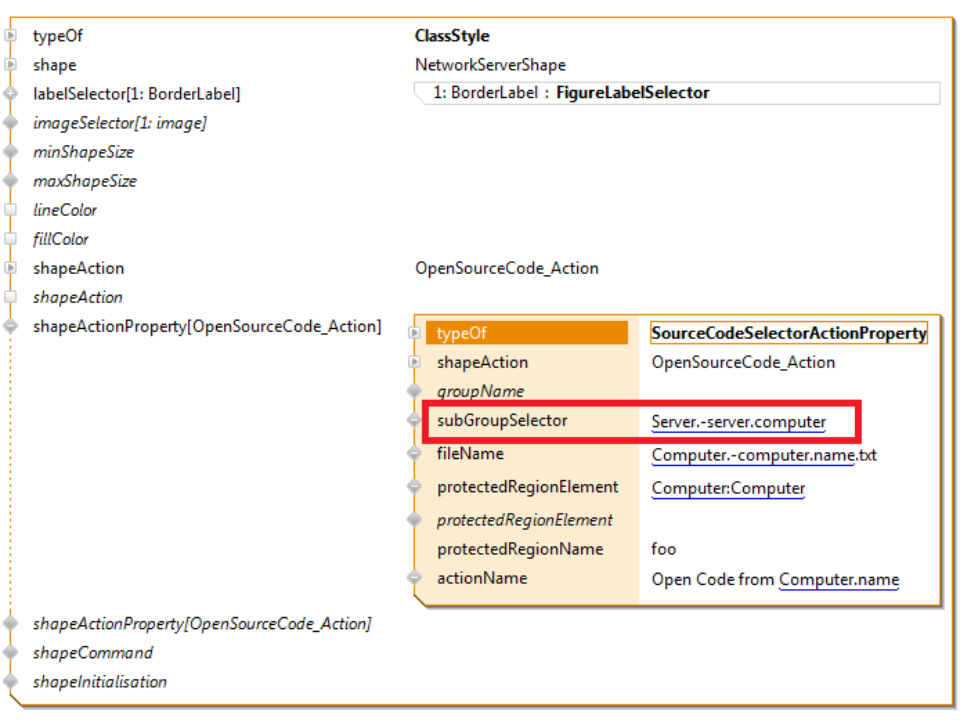

  • PropertyGroup OpenSourceCodePropertyAction

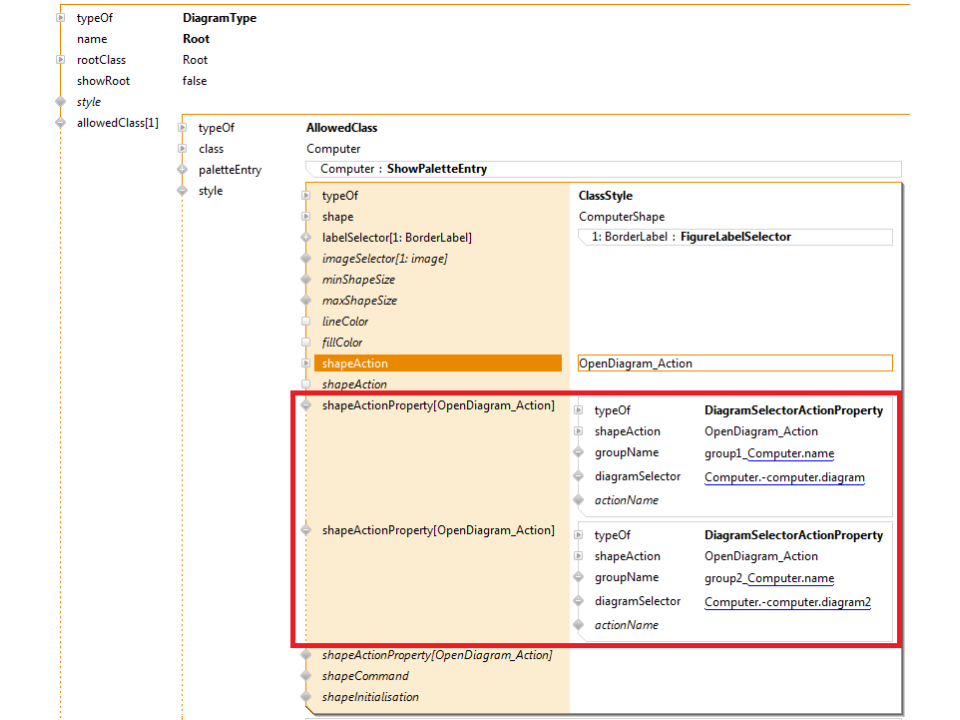

  • PropertyGroup ShapeProperty

Features

Domain Diagram Editor

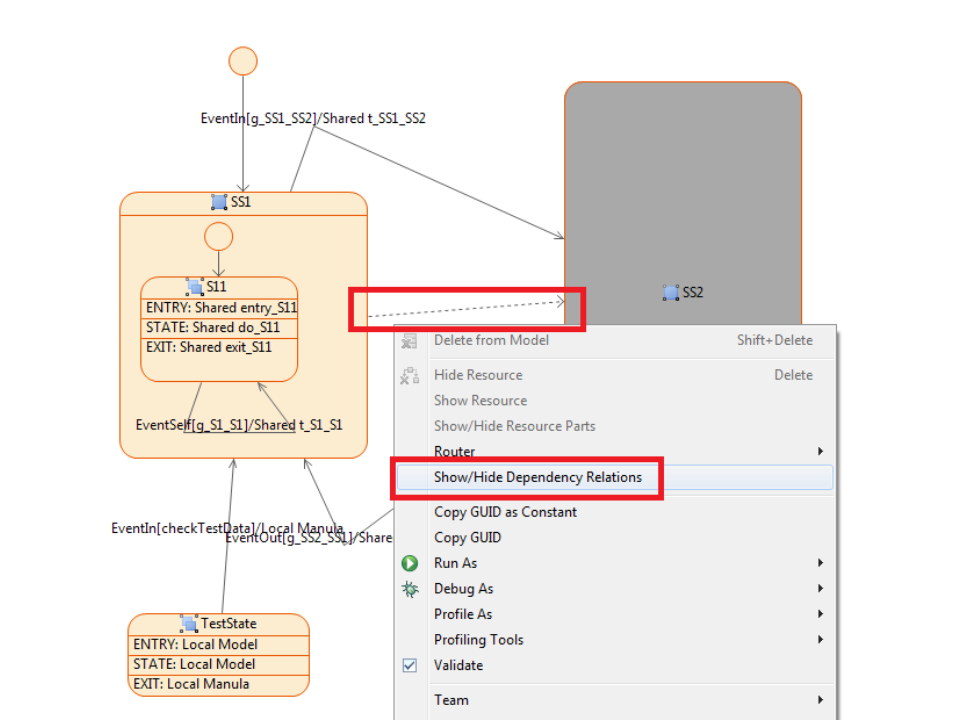

  • #6321 Hide and show Dependency relation via ContextMenu

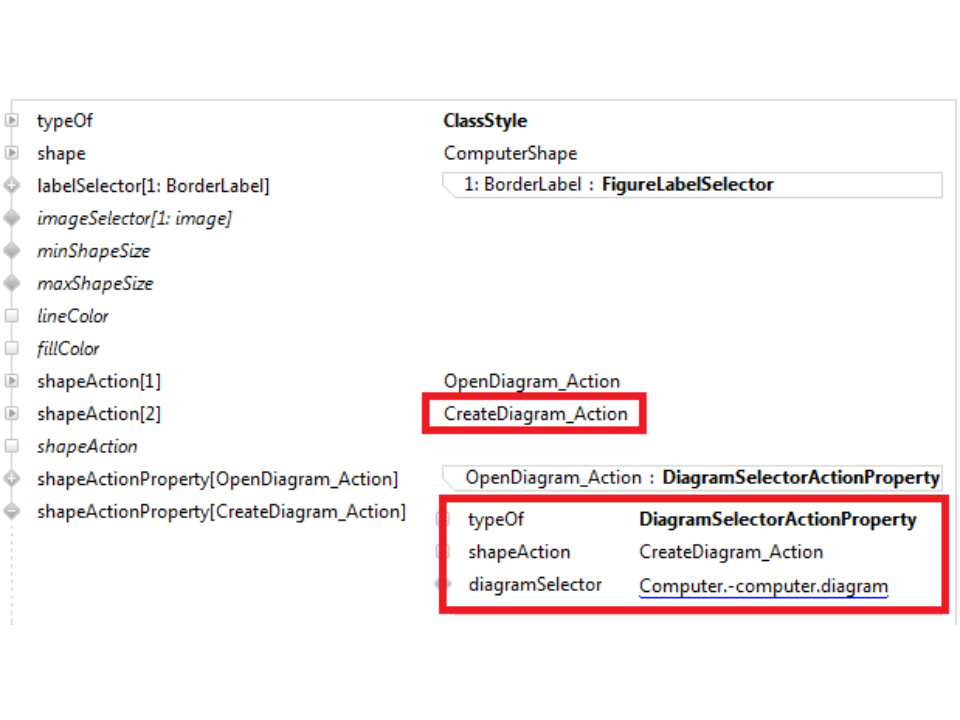

  • #6589 CreateDiagram_Action to create a new Domain Diagram via ContextMenu

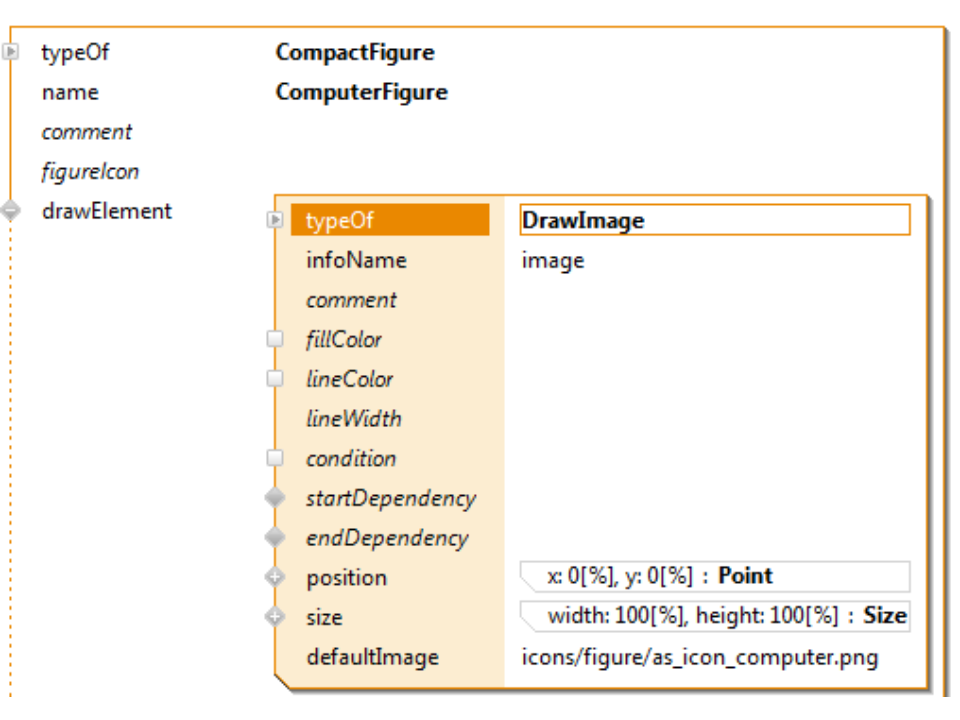

  • #6586 Use images inside domain diagram
  • #6590 Domain diagram Type supports action property groups for multiple actions

Class Diagram Editor

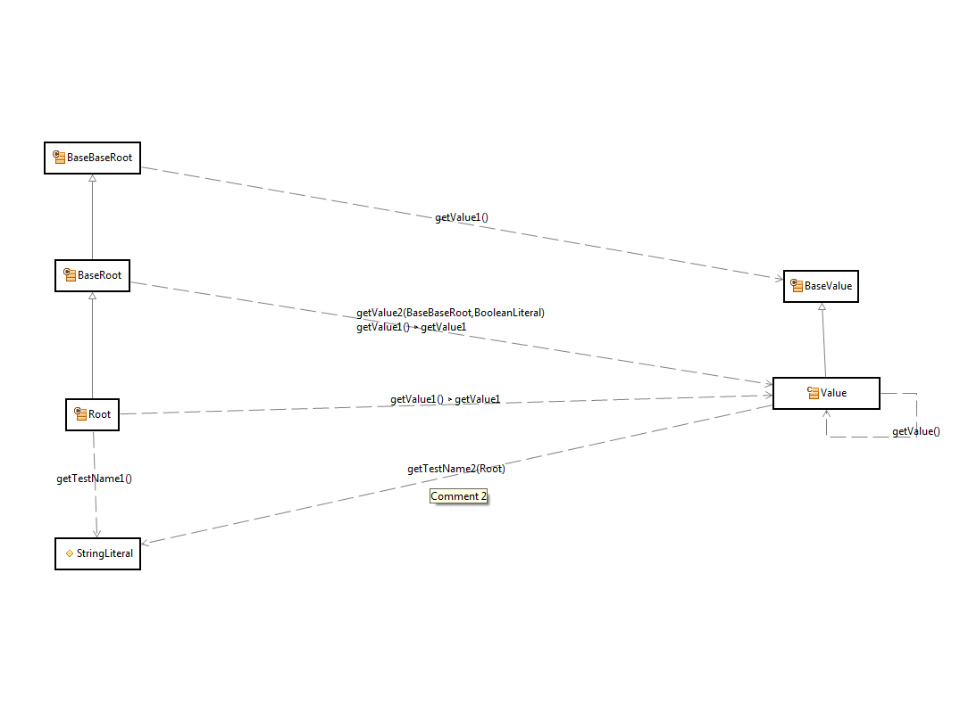

  • #6585 Show function dependencies inside class diagram

Validator

  • #6582 Model Inconsistencies now differs between error/warning/info

CIP

  • #6591 Cip C++ generator supports generateLibrary and include property inside the datatype library

Dendroid Resource Editor

  • #6592 Support editor options showDecoratedProperty, showTypeOnClosedResourceDetail and isReadOnly

Tabular Resource Editor

  • #6593 Support delete statement on ITablePresentationAspect

Bug Fixes

Resource Editor

  • #6145 Correct handling of the unsaved flag

Core

  • #6583 Load concurrent aggregated files inside resource pool

Class Diagram Editor

  • #6584 Property-Extension missing

Domain Diagram Editor

  • 6588 Open diagram action inside domainDiagram did not work without double click action

Validator

  • #6587 Project Explorer error marker pending

License Restrictions

  • Use the Actifsource Community Edition for NON-commercial projects only

Known Issues

Using OpenJ9


New Update Site



Installing Actifsource

  • Actifsource sets the memory settings automatically after installing and restarting
  • The Restart-Button displayed after the plugin installation, restarts eclipse in such a way that it still uses the old memory settings
  • To prevent OutOfMemoryExceptions you need to completely close eclipse (File, Exit or Close-Button) and start it again

Installation might fail

  • If the installation fails, delete the .eclipse folder in the user folder
  • Please note that passwords from updates sites will get lost
  • See also bugs.eclipse.org

Recommended System Requirements

We recommend the following system requirements.

System
Recommendation
Java Version 8
Eclipse 4.8
VM OpenJ9
OS Win 10, gtk Linux
OS Architecture 64 Bit
Processor 64 Bit
RAM 8 GB
Disk SSD


Configuration (eclipse.ini)

We recommend the following settings in the eclipse.ini file.

Property
Value
Minimum Memory Size -Xms800m
Maximum Memory Size -Xmx4000m
Java Virtual Machine -vm
C:\path\to\OpenJ9\javaw.exe


Used Open Source Libraries

We have used the following open source libraries in our products. Many thanks to all the developers for providing their great work to the community.

Library
License
annotations.jar
LGPL v2.1/BSD
ant-contrib-1.0b3.jar Apache
antlr-2.7.6.jar BSD
antlr-3.1.1-runtime.jar BSD
bcprov-jdk16-145.jar MIT
commons-collections-3.2.1.jar Apache
Eclispse 4.8.x EPL
jdom.jar Apache
jsr305.jar BSD
jug.jar LGPL v2.1
logging-1.0.3.jar Apache
objenesis-1.0.jar Apache
xerceslmpl.jar Apache
